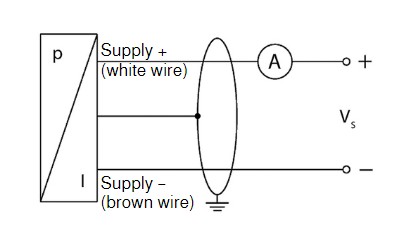

 Electrical diagram |
 |
- Diesel, lubricating oils
- Viscous, pasty liquids
- Corrosive, acids and bases liquids
BAMONIV is designed for level measurement on aggressive, viscous or contaminated liquids in non-pressurized tanks.

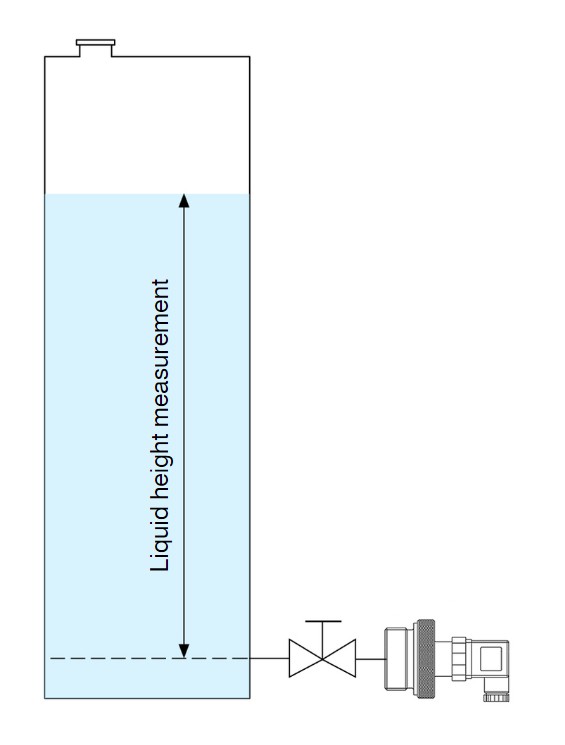

It operates according to the principle of hydrostatic pressure measurement. The pressure on the sensor increases proportionally with the height of liquid. BAMONIV integrates ceramic cell and delivers a 4-20 mA signal proportional to the level.
To be mounted at the bottom of a non-pressurized tank; BAMONIV to be ordered or with a connector or with a cable output (PVC cable).
| Measuring ranges | 0... 0.6 /... / 0 ... 10 m WC | |
| Long term stability | ≤ ± 0,1 % FS / year | |
| Accuracy | ≤ 0.35 % FS |
Materials:
| Measuring cell | Ceramic AI₂O₃ 96 % | |
| Fitting | PVDF | |
| Fitting type | BSP 1 ½" - DIN 3852 | |
| Seal | FPM | |
| Connection | ISO 4400 connector (IP65) or cable outlet (IP68), length on request |
|
| Power supply | 9 ... 32 V DC | |
| Output signal | 4...20 mA ; 2-wire | |
| Load | At 20 mA, Rmax. = [(Vs - Vs min) / 0,02] | |
| Electrical protections | Reverse polarity, overload, short circuit | |
| Emissions & interferences | In conformity with EN 61326 | |
| Response time | ≤ 7 s | |
| Overpressure | Less than 8 times the FS | |
| Liquid temperature | -40 ...+125 °C | |
| Temperature compensation | -20 ... + 80 °C | |
| Temperature incidence | ± 0.1 % FS /10 K | |
| Ambient temperature | -40 ... + 85 °C | |
| Storage temperature | -40 ...+100 °C | |
| Mass | About 200 g |
EC Conformity: The instrument meets the legal requirements of the current
European Directives
For the electrical connection, a shielded cable is recommended.
